Lanyard with LED lighting showing strap-lit and badge-lit zones glowing in a dark environment
Complete Buyer's Guide

Lanyard with LED

A lanyard with LED is a wearable credential, ID holder, or event accessory that incorporates light-emitting diodes — either in the strap, the badge, or both. This guide covers the three lighting zones, the components inside, the five model series, and how to choose the right one for your event or organization.

3 Lighting Zones 5 Models 8-12h Battery 4 Control Methods 200 MOQ
Start the Guide →
Definition

What Is a Lanyard with LED?

A lanyard with LED is a neck strap with a badge holder or printed panel that contains light-emitting diodes powered by batteries. Unlike a plain fabric lanyard, it emits light in one or more zones — making the wearer visible in the dark, adding brand impact, or creating synchronized crowd effects at events.

3
Lighting Zones

Strap-lit, badge-lit, or full-body — the light can be placed in three different zones of the lanyard.

7
RGB Colors

Every LED lanyard cycles through 7 preset colors, with 4 flash modes built in as standard.

8-12
Hours Battery

Runtime per battery set, with user-replaceable CR2032 or AAA cells in every model.

Lighting Zones

Three Ways a Lanyard Lights Up

The position of the LEDs determines what the lanyard looks like when lit — and what it is best suited for. These are the three lighting zones used across the GFH series.

Lanyard with LED lights embedded directly in the strap creating a full line of light along the neck strap
Zone 1

Strap-Lit

LEDs are embedded along the strap itself — typically 8 LEDs spaced evenly through the fabric. Because the light source runs the full length of the strap, the lanyard reads as a continuous line of light on the wearer's chest. This is the most visible lighting zone from a distance.

GFH-001

Best for: large events, crowd visibility, show-synced lighting.

Lanyard with LED backlighting inside the badge creating an even glow behind the printed logo
Zone 2

Badge-Lit

The LEDs sit behind the badge face, backlighting the printed or engraved logo. Acrylic badges diffuse the light evenly across the surface, creating a uniform glow that highlights the badge design. This zone is more refined and premium-looking than strap lighting.

GFH-004GFH-005

Best for: brand events, VIP credentials, corporate ID.

Round medal lanyard with LED perimeter lighting creating a full circular light display around the badge
Zone 3

Full-Body

Combined lighting — strap and badge both emit light — or a high-density configuration like the round medal with 10 perimeter LEDs. Full-body lanyards produce the brightest, most attention-grabbing effect, functioning almost like a wearable light panel.

GFH-001 + badgeGFH-003 (10 LEDs)

Best for: concerts, night festivals, maximum visibility.

A lanyard with LED can combine zones: GFH-001 lights both strap and badge simultaneously. The lighting zone affects brightness, battery life, and visual impact — discussed in the model section below.

Components

What's Inside a LED Lanyard

A lanyard with LED is a small electronic device, not just fabric with lights glued on. Every unit contains five core components, assembled and tested in our factory.

💡

LED Module

Surface-mount RGB LEDs on a small PCB. 1 to 10 LEDs depending on model. Each LED displays 7 colors and 4 flash modes.

🔋

Battery Compartment

CR2032 coin cells (2×) or AAA (3×). User-replaceable via coin slot or screwdriver. 8-12 hours runtime.

🖱

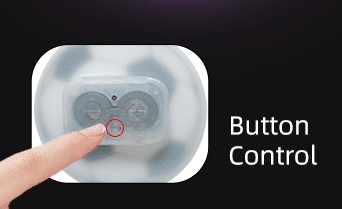

Control Button

Tactile switch on the badge edge. Long-press powers on/off; short tap cycles colors and flash modes. Rated for 100,000+ presses.

📡

RF Receiver (optional)

433MHz receiver in remote/DMX/APP-compatible models. Listens for transmitter signals with negligible standby draw.

🧵

Strap & Hardware

Nylon, TPU, or polyester webbing with printed branding, plus breakaway buckle and badge attachment clip.

Exploded view of a lanyard with LED showing the LED module, battery, button, and strap components

Components of a lanyard with LED

Five GFH series lanyard with LED models displayed together showing different lighting zones and badge styles
Model Comparison

The GFH Series: 5 Lanyards with LED

Five models cover every combination of lighting zone, material, and control method. Compare them side by side.

Model Best For
GFH-001
Nylon + ABS		 Events, staff ID, crowd lighting
GFH-002
TPU + ABS		 Outdoor events, rain, waterproof use
GFH-003
Round medal		 VIP passes, medals, max brightness
GFH-004
Transparent acrylic		 Brand events, corporate, premium ID
GFH-005
Custom acrylic		 Logo-shaped badges, merch, galas

All models share: 7 RGB colors, 4 flash modes, push button control, breakaway safety buckle. Control upgrades (RF remote, DMX, APP) available on most models.

Decision Guide

How to Choose Your Lanyard with LED

Three questions determine the right model. Answer them in order and the choice becomes clear.

01

Where does the light need to be?

If visibility from a distance matters most (crowds, night events), choose strap-lit GFH-001. If the badge design is the focus (brand logos, premium ID), choose badge-lit GFH-004 or GFH-005. If you need maximum brightness in a compact format, GFH-003 round medal delivers 10 perimeter LEDs.

Distance → GFH-001Brand → GFH-004/005
02

Who controls the light?

For individual wearers, the push button is built in — no extra hardware. For organized events with synchronized moments, add the GFC004 RF remote (one press, all lanyards). For show-integrated lighting, use DMX (GFC005). For attendee APP control, use GFC008. All models support the push button; remote/DMX/APP depend on model.

Individual → buttonSynchronized → DMX
03

What's the environment?

Outdoor events with rain or humidity call for the waterproof TPU strap of GFH-002. Indoor corporate events suit the refined acrylic look of GFH-004. High-visibility environments (traffic, warehouse) benefit from the bright strap lighting of GFH-001. The strap material and badge material are both selected based on where the lanyard will be used.

Outdoor → GFH-002Indoor → GFH-004

Not sure? Tell us your event type, quantity, and environment — our team recommends the optimal configuration within 24 hours.

GFLAI factory in Shenzhen China producing lanyards with LED showing assembly line and quality control stations

In-house LED lanyard production — Shenzhen, China

Why GFLAI

20 Years of LED Manufacturing

A lanyard with LED is only as good as its electronics. GFLAI has manufactured LED products since 2005, with the PCB design, firmware, injection molding, printing, assembly, and testing all under one roof in Shenzhen. Because we are the factory — not a trading company — you get factory-direct pricing, direct quality accountability, and the ability to iterate from sketch to sample without middleman delays.

Every lanyard with LED is 100% light-tested before packing: all 7 colors, all 4 flash modes, and the button response are verified on each unit. Battery compartments are sealed, straps are tensile-tested, and the breakaway buckle is pull-tested to the 5kg release standard. For batch consistency, samples from every production run are compared against the approved pre-production sample.

20 years LED 100% light-tested In-house engineering FCC / CE / RoHS DDP global delivery
FAQ

Lanyard with LED Questions

How long does the battery last in a lanyard with LED? +
Battery life ranges from 8 to 12 hours of continuous use depending on the model, brightness setting, and flash mode. Flashing modes extend battery life because the LED is off part of each cycle — slow flash uses roughly 50% less power than steady-on. All batteries are user-replaceable: 2 × CR2032 coin cells (GFH-001/002/004/005) or 3 × AAA (GFH-003).
Can I print my logo on the lanyard with LED? +
Yes. The strap supports multiple print methods: screen printing (solid colors, budget-friendly), sublimation (full-color with gradients and photographic detail), woven label (textile-integrated logo that cannot peel), and heat transfer. The badge can carry your logo via UV printing, laser engraving, or sublimation. For GFH-005, the badge itself can be laser-cut into your logo's silhouette with LEDs positioned to highlight it.
What is the minimum order quantity? +
200 units is the standard MOQ for customized lanyards with LED (printed strap, branded badge). For orders above 500 units, per-unit pricing improves. We have produced orders ranging from 500 to 50,000+ units. Standard (non-customized) lanyards may have a lower MOQ — contact our sales team for specifics.
Are LED lanyards safe to wear? +
Yes. All models include a breakaway safety buckle that releases at 5kg tension to prevent strangulation hazards (meeting ASTM F2057 standards for wearable credentials). The LED output is standard low-power surface-mount components — no heat generation, no flicker risk at harmful frequencies. Products are FCC, CE, and RoHS certified. Battery compartments are sealed to prevent contact with skin or moisture.
Can the lanyard be used as a normal ID holder when unlit? +
Yes. When the LED is off, the lanyard functions exactly like a standard ID lanyard. Models with badge slots (GFH-001, GFH-002, GFH-004) accept standard credit-card-size ID cards (86 × 54 mm). The lighting wraps around the card rather than blocking it. This dual function is why LED lanyards are increasingly replacing static lanyards for corporate ID and event credentialing.
How do I control many lanyards at once? +
For synchronized control of many lanyards, three options exist. The GFC004 RF remote broadcasts to every lanyard within 250 meters with one button press — ideal for crowds up to several thousand. The GFC005 DMX transmitter connects to a lighting console for show-synchronized control with millisecond timing — ideal for stadium-scale events. The GFC008 APP transmitter enables attendee control through a branded mobile app — ideal for interactive engagement. Transmitters are one-time purchases reusable across events.
