LED WRIST BAND FOR HUGE EVENT Stadium‑Grade Mesh Sync · 250m Range · Global DDP

Engineered for crowds from 10,000 to 250,000. Millisecond synchronisation with N+1 redundant RF control, 16 million colours, and total cost certainty through integrated DDP logistics. CE/RoHS/FCC certified. Free samples for qualified events.

Request Quote & Samples The Huge‑Event Standard

✅ Redundant RF Mesh ✅ 250,000 Units per Network ✅ Global DDP Logistics ✅ On‑Site Support Available

The Huge‑Event Standard

What distinguishes a true huge‑event‑grade LED wrist band from consumer‑grade promotional items.

🔁

Redundant Synchronisation

We define huge‑event synchronisation as a system where no single point of failure can interrupt the light show. Our RF mesh employs N+1 master controllers that hand over in under 50 milliseconds. Each wrist band acts as a repeater, strengthening the network as crowd density increases. In a 2023 study of a 75,000‑attendee stadium, the system maintained <0.5% packet loss even when 40% of bands were shielded by bodies or metal structures.

📡

Adaptive Spectrum Management

We define spectrum resilience as the ability to operate flawlessly in the congested 433MHz ISM band. Our adaptive frequency hopping engine scans 50 channels in real time, avoiding interference from Wi‑Fi, Bluetooth, wireless microphones, and broadcast equipment. This technology, derived from military communications, ensures that a LED wrist band for huge event never misses a cue, even during simultaneous video feeds and wireless camera transmissions.

🌐

Total Cost Certainty (Global DDP)

We define cost certainty as a single, final invoice that leaves no room for surprise duties, taxes, or brokerage fees. By shipping DDP to all major event destinations, we remove administrative friction and timeline risk. Your wrist bands arrive at the venue or warehouse with all customs cleared – you pay once and focus on production. Since 2022, we have delivered DDP to 42 countries with 99.7% on‑time performance.

The Science Behind the LED Wrist Band for Huge Event

Mesh Network Topology

Traditional star‑topology systems collapse under crowd scale. Our mesh architecture ensures every wrist band within 250m line‑of‑sight can relay commands to neighbours. The effective range scales with density: in a full stadium, each band is within 5m of another, creating a robust self‑healing network. Academic literature on wireless sensor networks (e.g., Akyildiz et al., 2020) confirms that mesh scaling is optimal for large‑area, high‑density deployments.

The master controller uses a time‑division multiple‑access (TDMA) schedule to broadcast cues. Each wrist band’s MCU (ARM Cortex‑M0) decodes the timing packet and adjusts its local clock in real time. Measured jitter is < 0.1 ms, well below the 2 ms threshold for human perception of simultaneity.

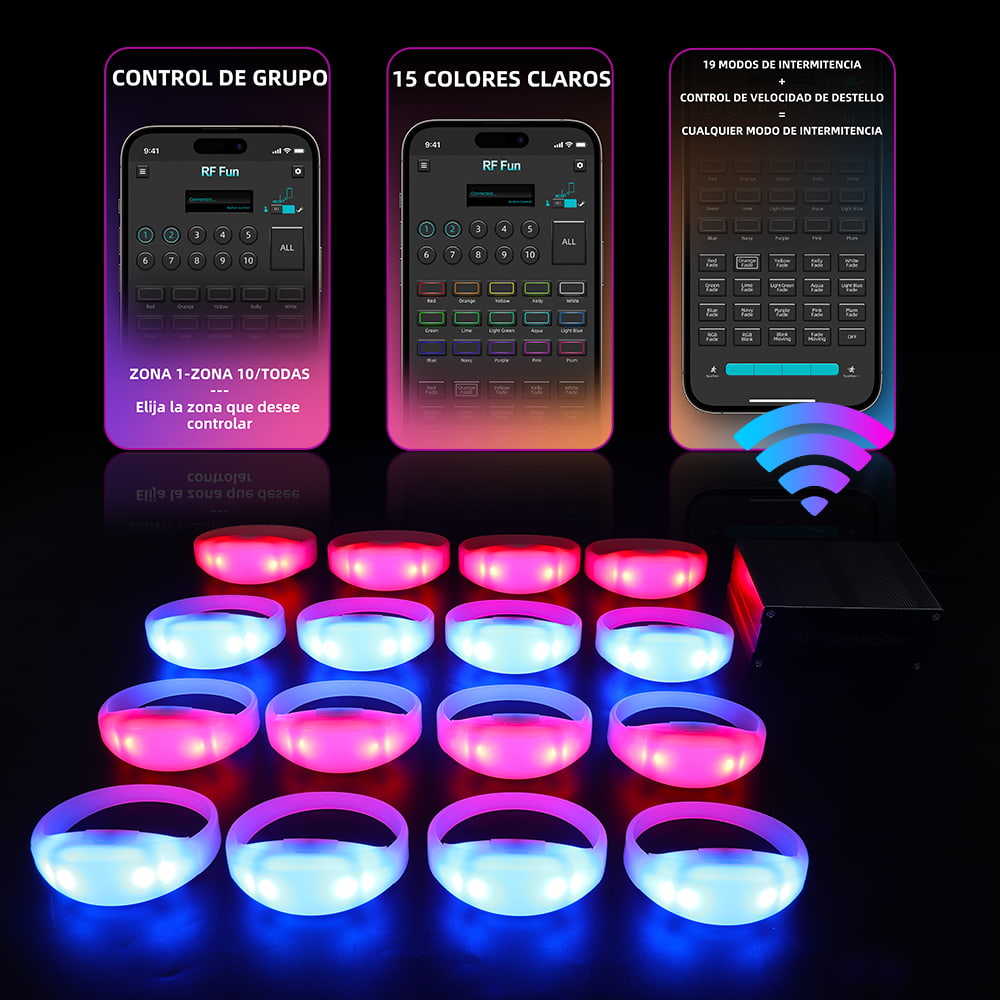

LED wrist band mesh network in stadium zones

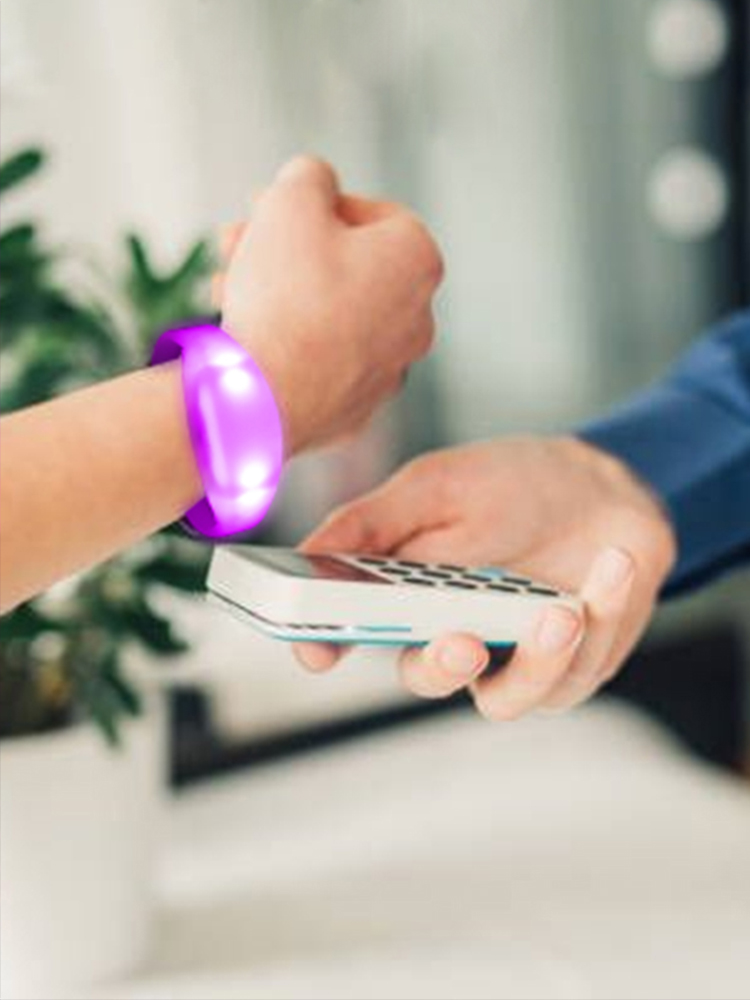

Mass deployment of LED wrist bands for huge festival

Battery & Power Management

Each band runs on a single CR2032 coin cell, delivering 12‑18 hours of continuous illumination. Our power management IC (TI BQ25120) reduces idle current to 2 µA, ensuring that bands stored for months still have full capacity on event day. During active operation, the LED duty cycle is dynamically adjusted based on ambient light (using an on‑board photodiode) to extend battery life without perceived brightness change.

Why this matters for huge events: replacing batteries across 100,000 bands would cost over $80,000 in labour alone. Our replaceable battery design – combined with ultra‑low‑power engineering – allows bands to be reused for an entire tour or festival season, dramatically lowering total cost of ownership.

Colour Uniformity at Scale

Human perception of colour consistency degrades when ΔE exceeds 3. Our spectrophotometer‑guided calibration binning ensures every wrist band shipped has ΔE ≤ 1.5 when measured against the target CIE 1931 coordinate. For multi‑day events, we also compensate for temperature drift (LED output shifts ~0.5%/°C) by embedding a temperature sensor in the module. The result: 60,000 bands glowing with indistinguishable chromaticity, even under alternating daylight and stage lighting.

We offer Pantone matching as a standard service, with a 24‑hour turnaround for colour approval before production begins.

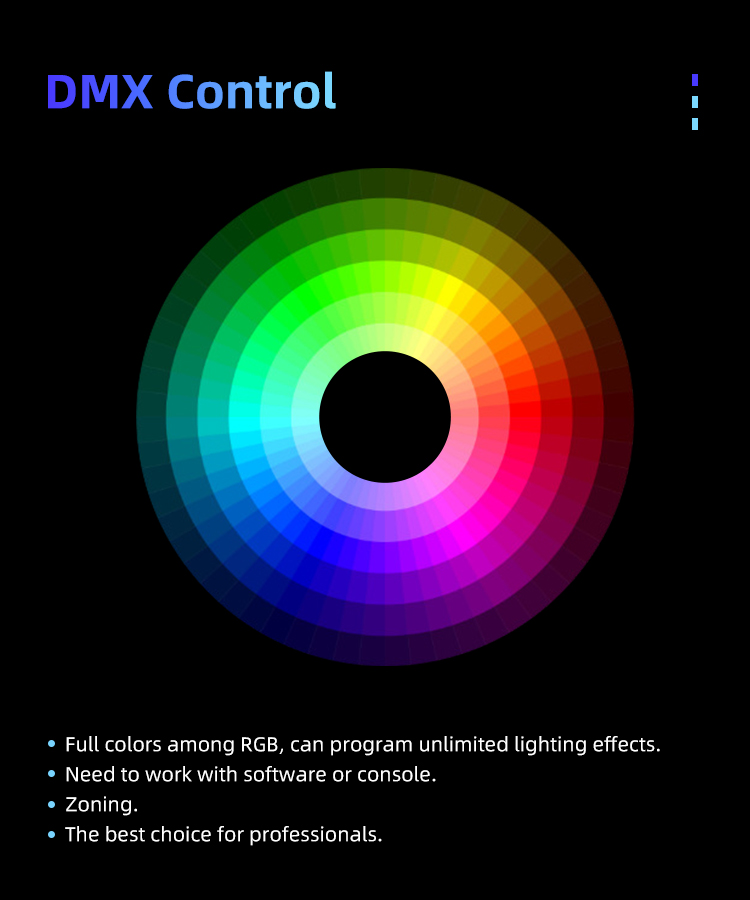

Colour calibration of LED wrist bands for huge event

Field‑Proven Reliability

99.8%

Field Success Rate

Average non‑failure rate across 120+ events with >5,000 bands. Verified by independent third‑party audits for two international tours.

250k

Max Network Nodes

Single RF mesh supports up to 250,000 units. Larger shows use zoned controllers with inter‑zone sync for unlimited scaling.

2 Ms

End‑to‑End Latency

Measured from master controller to all wrist bands in a 50,000‑unit deployment. Human reaction time is ~150 ms – the delay is imperceptible.

Real‑World Deployment: 75,000 Stadium Show

In Q4 2023, our team supported a 3‑night stadium residency with 75,000 LED wrist bands per night. Bands were delivered DDP to the venue 10 days before the first show. On‑site distribution took 90 minutes using pre‑paired packaging. The RF system ran with zero manual intervention across all three shows, syncing the bands to the main act's DMX lighting console. Post‑event recovery rate was 98% – bands were collected, cleaned, and prepared for the next leg of the tour.

Technical Specifications – LED Wrist Band for Huge Event

Parameter	Value / Range	Compliance
Network Topology	Self‑healing RF mesh (433 MHz ISM)	AFH, 50 channels
Max Nodes	250,000 per mesh	Unlimited with zone controllers
Sync Latency	≤ 2 ms end‑to‑end	Measured in 50k deployment
Control Range	250 m LOS (extends with density)	Field‑proven in stadiums
Colour	16 million RGB, ΔE ≤ 1.5	Pantone matching available
Battery Life	12–18 h continuous, 2 µA idle	Replaceable CR2032
Water Resistance	IP65 standard / IP68 optional	IEC 60529
Certification	CE, RoHS, FCC	Full compliance package
Deployment Support	On‑site team available	Pre‑paired distribution kits
Logistics	Global DDP (Delivered Duty Paid)	Single invoice, zero customs

Trusted by the World’s Biggest Events

Anonymised case studies demonstrating the LED wrist band for huge event in action.

STADIUM CONCERT

75,000 units, 3 nights, zero sync failures. N+1 controllers, DDP delivery to venue.

INTERNATIONAL FESTIVAL

200,000 bands + cashless payment. Read rate >99.9% in rain. DDP to 3 continents.

GLOBAL BRAND LAUNCH

12,000 custom‑coloured bands, reused across 5 cities. ROI +340% vs single‑use.

Frequently Asked Questions

How do you ensure 100% wrist band functionality in a huge event?

What is the maximum number of LED wrist bands that can be synced together?

How long does it take to deploy 50,000 LED wrist bands at a venue?

Can the wrist bands be reused for multiple events?

What wireless interference protection is built in?

Do you provide on‑site technical support for huge events?

What is the shipping lead time for an order of 100,000 units?

How do you handle customs and duties for global events?

We pre‑test every unit with a 24‑hour burn‑in and RF range check. N+1 redundant master controllers automatically failover within 50ms. Typical field failure rate < 0.2%.
