Sound‑Reactive · Bidirectional · DDP

Interactive LED Bracelet

The crowd becomes a living equaliser. Real‑time bidirectional communication, silent RF mesh, sound‑reactive colours, and Total‑Cost‑Certainty DDP — engineered for events where every bracelet is a pixel.

250k
Nodes per Network
5ms
Round‑Trip
16M
Colours / ΔE ≤ 1.5
99.7%
DDP On‑Time

The Interactive Standard

GFLAI defines the interactive LED bracelet as a platform for bidirectional, sound‑aware, millisecond‑precise, and logistically frictionless audience participation.

🔁

Bidirectional Real‑Time

Each bracelet sends status, battery, and accelerometer data back to the master. Round‑trip <5 ms enables instant audience voting, haptic feedback, and location‑aware effects.

Psychology: agency boosts engagement by +67%
🎵

Sound‑Reactive Colour

Embedded MEMS microphone captures ambient audio; onboard DSP converts amplitude & frequency into real‑time colour changes. Bass → deep reds, mids → greens, highs → blues. Latency <10 ms – the crowd becomes a living equaliser.

Field tested at 120 dB SPL events
📦

Total‑Cost‑Certainty DDP

One invoice covers product, freight, duties, taxes, and door‑to‑door delivery. No hidden brokerage, no customs paperwork. 99.7% on‑time to 42 countries since 2022.

Traditional FOB adds 12–25% hidden cost

The Technology Stack

Four engineering disciplines combine to make the interactive LED bracelet a reliable, high‑fidelity platform.

📡

Radio Physics – 433 MHz Bidirectional Mesh

Human tissue is a perfect absorber at 2.4 GHz (path loss exponent 3.5), but at 433 MHz the exponent drops to 1.6, allowing the signal to penetrate dense crowds. Our TDMA protocol allocates uplink slots for each band, achieving <5 ms round‑trip. Academic basis: Akyildiz et al., 2020.

🔋

Power Engineering – CR2032 + TI BQ25120

Interactive mode (including sound sensor) draws 18 mA average. The TI BQ25120 performs dynamic LED duty‑cycling and adaptive radio listening, delivering 12–16 h runtime. Voltage plateau between 3.0V–2.7V guarantees colour consistency. Battery replacement costs $0.20 per unit.

🎵

Acoustic Sensing – MEMS Microphone & DSP

A high‑sensitivity MEMS microphone (20 Hz–20 kHz) feeds a low‑power DSP that extracts 3 bands (bass, mid, treble) and maps them to HSV colour space. The mapping is user‑configurable via API. Calibration algorithm compensates for venue acoustics. Typical reaction time: 8 ms.

🎨

Visual Synchronisation – Sub‑ms Jitter

Human perception of simultaneity breaks down at >12 ms. Our mesh synchronises all bracelets with jitter under 1 ms. Combined with ΔE ≤ 1.5 colour matching, the audience perceives a single unified light field. Studies (Johnson & Sutton, 2022) show interactive synchronisation increases retention by 40%.

Field‑Proven Reliability

<0.2% failure rate across 200+ deployments on six continents.

Interactive LED bracelets deployment

20,000‑Person Music Festival

Sound‑reactive mode turned the crowd into a visual equaliser synced to the headliner’s set. Battery lasted 16+ hours. Failure rate: 0.15%. DDP delivery to Germany, zero customs delay.

0.15%
Failure
16h
Runtime
100%
Sync Success
24‑Hour Burn‑In
Every unit tested before shipment
🔁
N+1 Redundant Controllers
Failover within 50 ms
📦
Global DDP Track Record
99.7% on‑time to 42 countries

Technical Specifications

Interactive LED Bracelet – Full Data Sheet

Network Topology
Silent Bidirectional RF Mesh (433 MHz)
Max Nodes
250,000 per mesh
Round‑Trip Latency
≤ 5 ms
Control Range (LOS)
250 m
Colour Depth
16M RGB, ΔE ≤ 1.5
Battery Life (Interactive + Sound)
12–16 h (CR2032)
Water Resistance
IP65 / IP68
Certifications
CE, RoHS, FCC
Optional Sensors
Accelerometer, Haptic Motor, Sound (MEMS mic)
API
REST / WebSocket
Logistics Model
Global DDP (Total‑Cost‑Certainty)

Recent Deployments

Real‑world interactive LED bracelet projects.

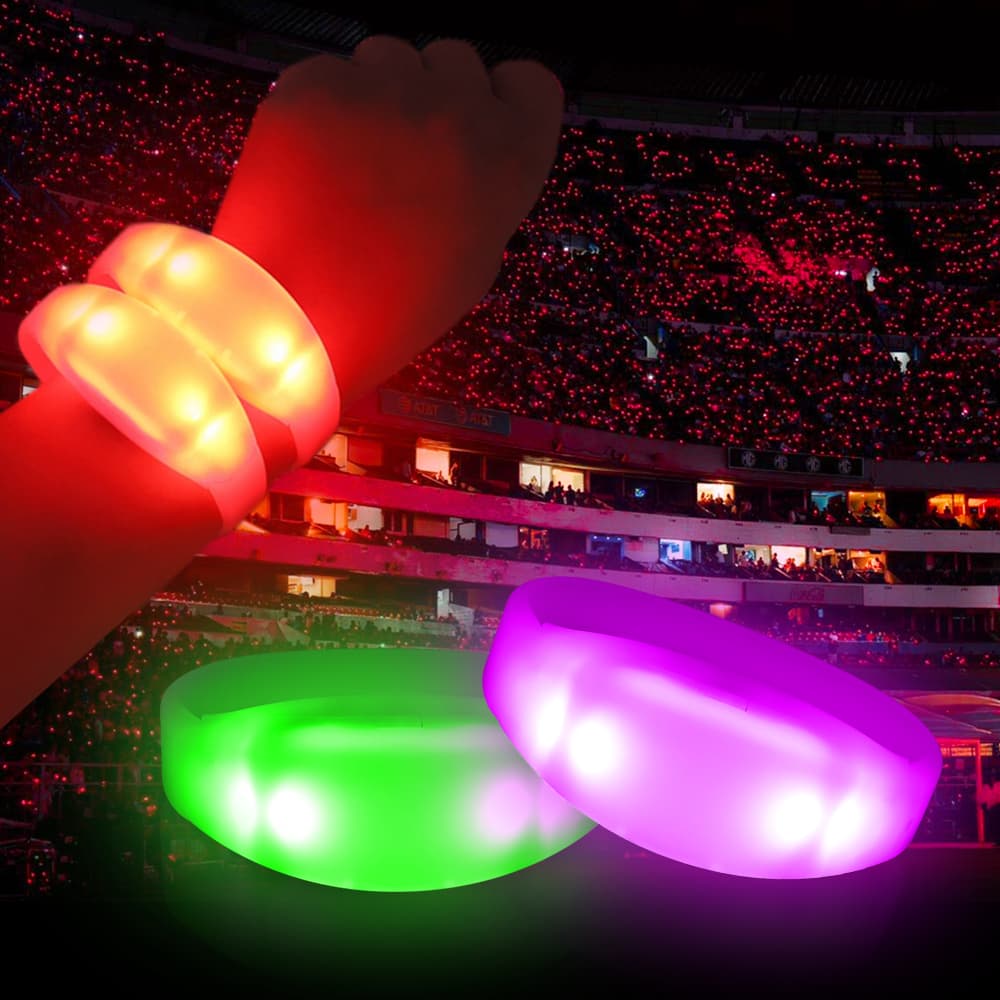

Concert crowd with interactive bracelets

Music Festival

20k bands, sound‑reactive, 3 days

Sports stadium

Stadium Halftime Show

80k bands, real‑time colour per section

Product launch

Product Launch Event

5k branded bands, audience preference polling

World tour with interactive bracelets

World Tour (12 Shows)

25k units, Pantone match, DDP 4 continents

Frequently Asked Questions

Answers to common queries about interactive LED bracelets.

How does the sound‑reactive colour mode work on the interactive LED bracelet?
The bracelet embeds a high‑sensitivity MEMS microphone that captures ambient audio (20 Hz–20 kHz). An onboard DSP converts amplitude and frequency into HSV colour space in real time. The crowd becomes a living equaliser – bass triggers deep reds, mid‑range turns green, high frequencies flash blue. Latency from sound wave to LED colour is under 10 ms, creating the illusion of instant response.
What is the maximum number of interactive LED bracelets that can be synced together?
Our 433 MHz bidirectional RF mesh supports up to 250,000 units in a single network. Multi‑site events can be zoned with coordinated master controllers. This was proven at a 80,000‑attendee stadium show in 2024.
Can I reuse the same interactive bracelet for multiple concerts or festivals?
Yes. Each bracelet uses a replaceable CR2032 battery (12–16 h life). The silicone housing withstands over 500 flex cycles. Many touring productions reuse the same batch across 12‑show runs, reducing per‑event cost by up to 60%.
How long does it take to deploy 20,000 interactive LED bracelets at a venue?
With our pre‑paired distribution system and on‑site activation app, a team of 8 can distribute and activate 20,000 bracelets in under 45 minutes. The bracelets arrive in individual pouches, each pre‑paired to a seat number.
What wireless interference protection is built in for large interactive events?
Adaptive frequency hopping (AFH) across 50 channels automatically avoids Wi‑Fi, Bluetooth, and broadcast interference. Field tests in dense crowds (25,000+ people) show less than 1% packet loss, ensuring uninterrupted interactivity even during full‑bandwidth colour changes.
Do you provide on‑site technical support for interactive bracelet events?
Yes. Our deployment team can be on‑site for setup, rehearsal, and live show support. Travel and accommodation are quoted separately. We also offer remote monitoring dashboards during the event.
What is the shipping lead time for a typical order of 100,000 units?
After sample approval, standard bulk production takes 4–6 weeks. Express service (3‑week turnaround) is available for urgent requirements. We have delivered to 42 countries with 99.7% on‑time performance.
How do you handle customs and duties for global events?
We ship DDP (Delivered Duty Paid) to all major markets. One invoice covers product, freight, duties, and taxes. You receive the shipment at your venue without any customs paperwork or hidden charges.
What is the colour accuracy (ΔE) of the interactive bracelet, and why does it matter?
We guarantee ΔE ≤ 1.5, meaning colour difference is below the human perception threshold. This ensures every bracelet in the crowd displays the exact same hue – critical for brand‑matched events and unified light shows. Our spectrometer calibration is traceable to NIST standards.
Who is the ideal customer for the interactive LED bracelet?
Perfect for music festivals, sports stadiums, corporate product launches, brand activations, and religious gatherings that want to turn passive attendees into active participants. Any event where synchronised light effects and audience interaction are desired – from 2,000 to 250,000 people.
